    Rail clip, or called elastic rail clip used to fasten steel rail track


    Zhongyue customized rail elastic rail clips E clips railway fasteners

    Rail Fasteners Rail Clips / Railway Track Fittings/Elastic Rail Clip

    Rail clip, or called elastic rail clip used to fasten steel rail track


    Elastic rail clip is one of the common railway fasteners in the railway system. In general, elastic rail clip is made of forged spring steel and has many applications. No matter as a part of rail fastening system or as a rail fastener, elastic rail clip is used with other railway track parts, such as railroad spike, rail pad, tie plate and plastic dowel.


    Elastic rail clip function


    Like other rail fasteners, the main function of rail clip is fastening railway sleeper and steel rail together. The rail clip is considered as one of the best ways to ensure that rails do not move, bend, warp, or rot. There are data shows that each elastic rail clip can bear about two tons of force upon a railway track.


    Rail clip types

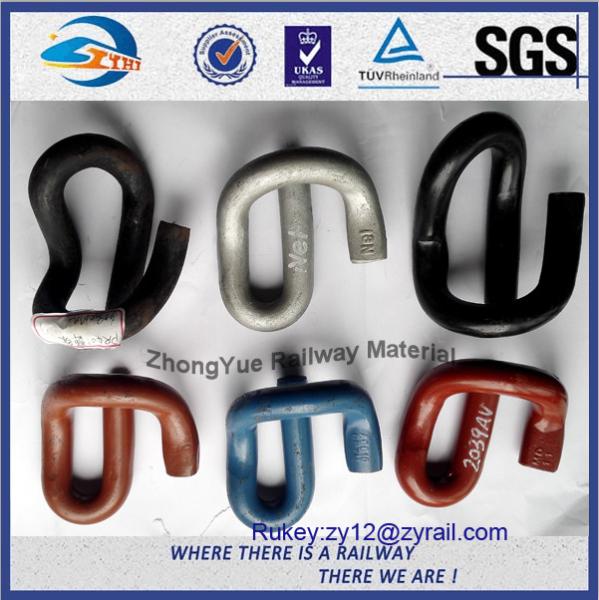

    For different applications and national standards, elastic rail clips can be classified into various types, including rail e- clip, SKL rail clips, Nabla rail clip, Deenik clip, crane rail clip, Russia rail clip as well as other standard rail clips.


    BrandZhongYue
    Namerail clip
    TypeE clip (e1809, e2006,e2007,e2009,etc)
    Skl clip (skl1,skl3,skl12,skl14)
    Or the type by customers’ drawings
    Material60Si2MnA60Si2CrA55Si2Mn38Si7
    Chemical composition(%)C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
    Hardness

    For e clip: 44-48HRC

    For skl clip: 42-47HRC

    Fatigue life

    for Dia.18 is 3 millions cycles without breaking

    for Dia.20 is 5 millions cycles without breaking

    Surfaceplain (oiled), Oxide black, color painting
    Standard refersDIN17221, BS970, GB/T1222

    Rail clip, or called elastic rail clip used to fasten steel rail trackRail clip, or called elastic rail clip used to fasten steel rail track


    Features:

    1. Fast clamp with 1.8 mm fatigue strength
    2. Rail tilting protection by middle bend of the tension clamp and special design of the angled guide plate
    3. Pre-assembly of all components in the sleeper factory possible
    4. Reduction of maintenance costs by permanent elastic tensioning of the rail with tension clamps (2 x 12 kN toe load)
    5. Gauge adjustment ±10 mm in 2.5 mm steps

    Produce Process


    Clip Production Process
    1raw material
    2shearing
    3heating to forging temperature (950-1000 degrees celsius)
    4forming
    5hardening
    6tempering below 350 degrees celsius
    7inspection
    8packing


    Surface Treatment

    1. plain (oiled)
    2. oxide Black
    3. color painting
    4. DHG
    5. galavazing

    Inspection machine

    1. Brinell Hardness Tester
    2. Rockwell Hardness Machine
    3. Automatic Impact Testing Machine
    4. Metallographic Microscope
    5. Carbon and Sulfur Analyzer
    6. Fatigue Testing Machine
    7. Metallographic Specimen Polishing Machine
    8. Metallographic Specimen Pointing Machine
    9. Automatic High-speed Analyzer


    Package

    1. 25 kg double-layer woven bag with free fumigation wooden pallent
    2. 36bags/pallets
    3. 20pallets/20ft

    Application

    1. Speed <120km/h
    2. High-way speed >120km/h


    Quotation necessity ( the more, the better )

    1. Drawing with full size
    2. Material and grade
    3. Surface Treatment
    4. Order quantity

    Similarity


    1. E clip system
    2. SKL1 clip system
    3. SKL2 clip system
    4. SKL3 clip system
    5. SKL12 clip system
    6. SKL14 clip system
    7. SKL21 clip system
    8. Nabla clip system
    9. KP clip system

    Packing:
