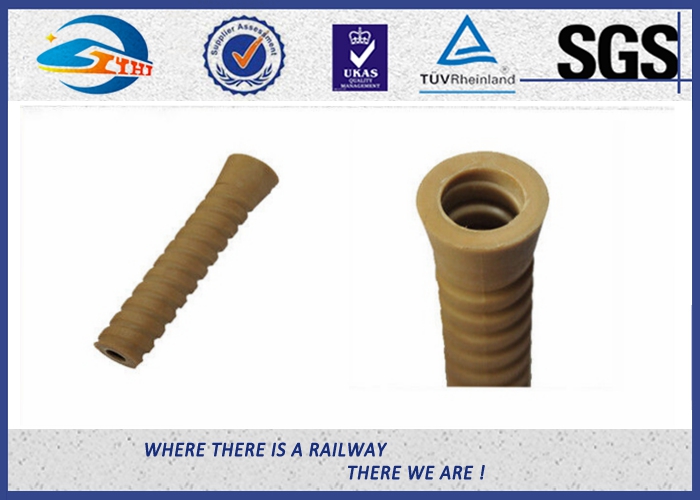

    SDU35 HDPE Dowel Plastic And Rubber Part Used In W14 Rail Fastening System

    Ask Lasest Price
    Brand Name : ZhongYue
    Model Number : SDU35
    Certification : ISO9001:2015
    Price : Negociable
    Payment Terms : T/T, 30% in advance
    Supply Ability : 100,000 pcs per week
    Delivery Time : 15 to 25 days according to your order quantity
    • Product Details
    • Company Profile

    SDU35 HDPE Dowel Plastic And Rubber Part Used In W14 Rail Fastening System

    Customized SDU35 HDPE Material Plastic Dowel Used In W14 Rail Fastening System


    Brand: ZhongYue

    Material: PA66, HDPE, EVA, Rubber

    Type: Rail insulator, guide plate, material is PA66; Plastic dowel, material is PA66 or HDPE; Rail pad, material is EVA, HDPE, or Rubber


    Rubber pads for under railroad sleeprs resistant to :
    abrasion
    oil
    ozone
    other environmental influences

    railway Rubber pads for under railroad sleeprs


    Standard : AREA, UIC,BS or other standards or drawings required by clients

    Specification: R54 1067mm, R54 1435mm, R60 1435mm.UIC54,UIC60,ZW687

    Materials:HDPE,Rubber,


    HDPE


    No.

    Technique parameter

    Unit

    Technical requirement

    Value

    1

    Density

    g/㎝3

    0.95-0.98

    0.95

    2

    Tensile strength

    Mpa

    ≥19

    19

    3

    Elongation

    %

    >80

    150

    4

    Melting point

    170-190

    190

    5

    Insulation resistance

    Ω

    ≥1×1010

    3.5×1010

    6

    Hardness

    A

    ≥98

    98(A)


    EVA : polyethylene 80%, Vinyl Acetate 20%


    No

    Technique parameter

    Unit

    Technical requirement

    Value

    1

    Density

    g/㎝3

    0.95-0.98

    0.95

    2

    Tensile strength

    Mpa

    ≥15

    16

    3

    Elongation

    %

    >500

    550

    4

    Melting point

    170-190

    170

    5

    Insulation resistance

    Ω

    ≥1×1010

    5.0×1010

    6

    Hardness

    A

    ≥90

    92(A)


    Rubber


    No.

    Technique parameter

    Unit

    Value

    1

    Stiffness


    KN

    90-130

    2

    Hardness shore A


    72-80degree

    3

    Electronic Resistance


    Ω

    ≥106

    4

    Tensile strength before aging


    Mpa

    ≥12.5

    5

    Elongation before aging


    %

    ≥250
