    Crane Clip 21/050 For A75 , QU80 Crane Rail , Q235 Oiling Crane Rail Clamp with 16mm Bolt

    Ask Lasest Price
    Brand Name : ZhongYue
    Model Number : Crane Clip
    Certification : ISO9001:2015
    Price : Negociable
    Payment Terms : T/T, 30% in advance
    Supply Ability : 600,000 pcs per month
    Delivery Time : 20- 30 days according to your order quantity
    • Product Details
    • Company Profile

    Crane Clip 21/050 For A75 , QU80 Crane Rail , Q235 Oiling Crane Rail Clamp with 16mm Bolt

    Crane Clip 21/050 For A75, QU80 Crane Rail, Crane Rail Clamp with 16mm Bolt


    Specification:


    Item NameRailway Rail Clamp
    UsageRail Fastening
    MaterialIron Steel, Cast Iron
    Surface TreatmentBluing, Plain Oiling, Color Painting, etc
    Documents with DeliveryMechanical Properties, Chemical Composition, All Sizes Reports
    StandardISO, SGS, TUV

    Product Show




    Material

    1. Forging: Q235;
    2. Cast steel: ZG35;
    3. Cast iron: TQ500-7
    Grade4.6
    MaterialQ235
    MechanicalTensile strength: ≥ 400Mpa
    Yield strength: ≥ 240Mpa
    Elongation: ≥ 22%
    Cold bending: 90 degree
    without crack

    NameQT500-7QT450-10QT400-15
    StandardGB 1348-88GB 1348-88GB 1348-89
    Chemical composition(%)C:3.60-3.80C:3.40-3.90C:3.50-3.60
    Mn:≤0.6Mn:0.2-0.5Mn:≤0.5
    Si:2.50-2.90Si:2.70-3.00Si:3.0-3.2
    P:≤0.08P:≤0.07P:≤0.07
    S:≤0.025S:≤0.03S:≤0.02
    Tensile Strength≥500 Mpa≥450 Mpa≥400 Mpa
    Yield Strength≥320 Mpa≥310 Mpa≥250 Mpa
    Elongation(%)≥7≥10≥15
    Hardnrss170~230HB160~210HB130~180HB
    Metallographic organizationferrite + pearlitegraphite + ferrite + pearliteferrite

    Surface Treatment

    1. plain (oiled)
    2. color paint
    3. oxide Black (most choice)
    4. galavazing
    5. DHG

    Inspection machine

    1. Brinell Hardness Tester
    2. Carbon and Sulfur Analyzer
    3. Rockwell Hardness Machine
    4. Automatic Impact Testing Machine
    5. Metallographic Microscope
    6. Automatic High-speed Analyzer
    7. Fatigue Testing Machine
    8. Metallographic Specimen Polishing Machine
    9. Metallographic Specimen Pointing Machine

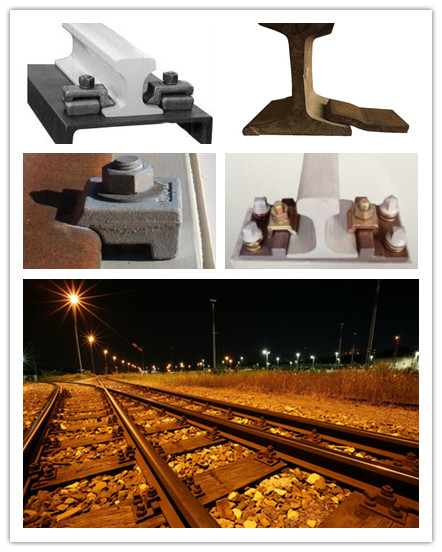

    Application


    Similarity:


    Package

    1. 25 kg double-layer woven bag with free fumigation wooden pallent
    2. 36bags/pallets
    3. 20pallets/20ft
    4. as client's requirement

    Quotation necessity ( the more, the better )

    1. Drawing with full size
    2. Material
    3. Surface Treatment
    4. Order quantity

    If you have any futher question or request, welcome to contact me.


    Contact: Janet Jiang zy15@zyrail.com
