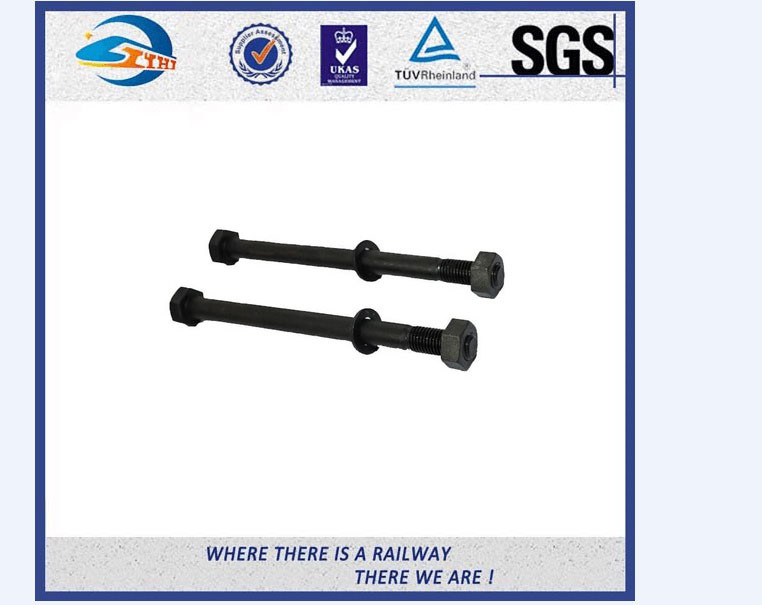

ZhongYue raiwaly Titanium automotive fasteners,screws,bolts and
nuts
Specifications:
Standard:DIN, JIS, ISO, ANSI, ASME, BS, AS
Grade:4.8/ 8.8/ 10.9/ 12.9
Dimensions:M8, M10, M12, M14, M16, M18, M20, M22, M24 and so on
Surface Treatment:Zinc-plated, Plain, Black Anodize, Dacroment
| D | L | I | Threads Per Inch |
| Nom. Dia. Over Thread | Length Under Head | Min. Thread Length |
| 7/8 | Under 7",in steps of 1/4" From 7" to 10" in steps of 1/2" | 2" | 9 |
| 1 | 2-1/4" | 8 |
| 1-1/8 | 2-1/2" | 7 |
| Additional Sizes Now in Use But Not Recommended for New Designs |
| 13/16 | Same as above | 1-7/8" | 10 |
| 15/16 | 2-7/8" | 9 |
| 1-1/16 | 2-3/8" | 8 |
Note: All dimensions given in inches.
Tolerances: Length (L) ± 1/8", Neck (O and R1) ± 0.0313", Head (A
and H) ± 0.0625", R2 ±0.0175" In ordering bolts, specify the
nominal diameter, "D" , over the threads and not the body diameter. |
Advantage:
We are a leading and reputed manufacturer of qualified railway
products in China since 2013, have got the production license of
China’s Railway Ministry on railway products. We supply to Thailand
Railway, Indonesia Railway, Zambia Railway, American Railway etc
for years. We can customize your product with ASTM, DIN, BS, JIS,
AS, NF, ISO and GB standard, competitive price available.
Order Hints:
MOQ: based on your product
Delivery time:Within 30days after order confirmed
Shipment: sea freight
Payment term: T/T 30% deposit, balance before shipment; LC
Our product range:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog
spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/
Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved
bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/
Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip
bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail
sleepers
9. Plastic dowel / Guide plate/ Nylon insert
